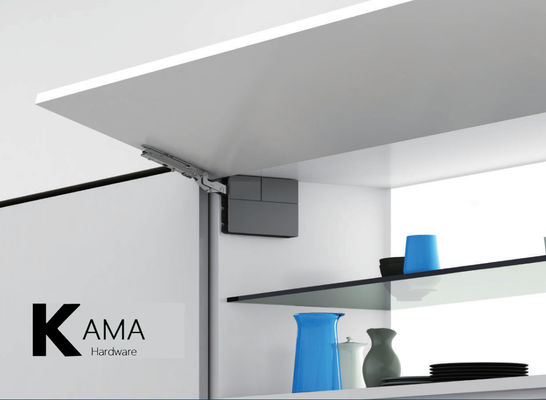

26mm Thickness Cabinet Door Lift System Heavy Duty 6 Directions Adjustment Soft Quiet
Product Name | Cabinet Lift System | Model Type | HK1000/2000/3000 |
---|---|---|---|
Opening Angle | 107° | Door Opening Force | 5-30N |
Door Thickness | 16-26mm | Door Height | 250-650mm |
Top Panel Height | SOB= 16-26 | Door Weight | 2-10 Kgs |
High Light | 6 directions cabinet door lift system,26mm cabinet door lift system,soft quiet cabinet lift up system |
NEW PRODUCT- LIFTING SYSTEM
Model type | HK1000/HK2000/HK3000 |
Opening Angle | 107° |
Door opening force | 5-30N |
Door thickness | 16-26mm |
Door height | 250-650mm |
Top panel height | SOB= 16-26 |
Door weight | 2-10KGS |
Adjustment function | 6 directions |
FEATURES:
-- Stops at any angles once the door opens at 60° ± 15°
-- Door opening force is within 5-30N
-- Door plate clcoses automatically at 40° ± 15°
-- Applicable thickness range of door: D= 16mm-26mm
-- Door height: 250mm-650mm
-- Top panel height: SOB= 16-26
-- Loading: the maximum door weight is 10kgs
-- Tool- free assembly
-- Open and close gently, with double buffering function
-- Six direction adjustment of door
-- No hinges are necessary
1 SET of Lift Sytem contains:
-- 1 pair of Install positioning buckle
--1 pair of lift mechanism (L/R)
-- 1 pair of cover (L/R)
-- 1 pair of front panel fixing brackets
INSTALLATION INSTRUCTION:
